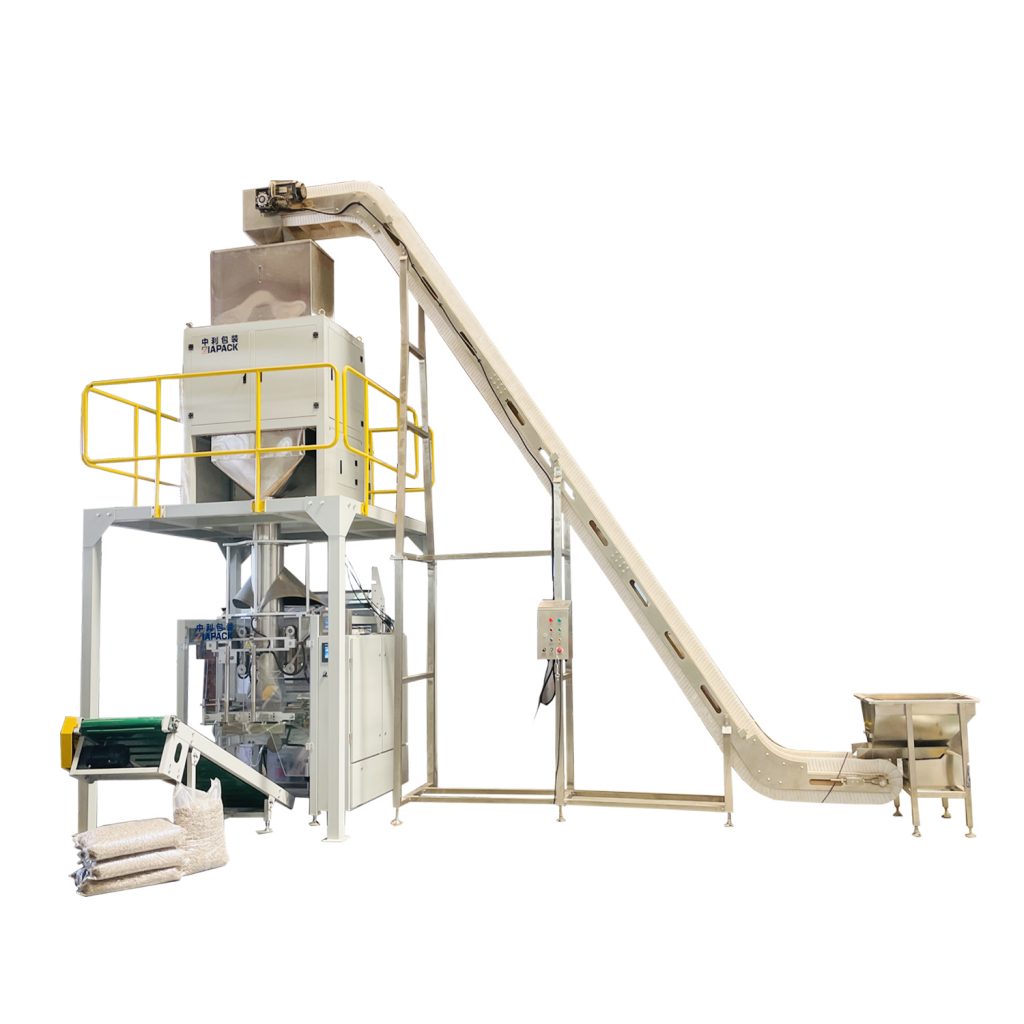

Automatic15-20 kg wooden pellets bag forming filling packaging machine
Giới thiệu :
This unit machine is special design for packaging small piece products like nuts dates,chips, wooden pellets fertilizer and so on .The whole machine body made by SUS304 .Including product weighing filling machine ,VFFS bag forming sealing packaging machine ,one set platform for weighing machine and output conveyor for transfer the finished bag.According client requirement we can add handle hole punching device .
Các thông số kỹ thuật:
Weighing Range: 1kg-5kg
Packaging Speed:12-30 bags/min
Bag size: (150-420)*(120-350)mm(L*W)
Max film width:720mm
Yêu cầu khí nén: 0,6Mpa 0,65m³ / phút
Reel outer diameter: 450mm
Đường kính bên trong lõi: 75mm
Machine weight: 950kg
Power source: 6.5kW 380V±10% 50Hz
Các tính năng và đặc điểm chính:
- Nhiều loại túi: Túi gối và túi Gusset.
- Tốc độ cao: 20-50 bao / phút
- Dễ vận hành: Bộ điều khiển PLC và màn hình cảm ứng màu, chỉ báo lỗi trên màn hình cảm ứng.
- Dễ điều chỉnh: chỉ khoảng 10 phút để thay đổi các túi khác nhau.
- Điều khiển tần số: tốc độ có thể được điều chỉnh bằng chuyển đổi tần số trong phạm vi.
- Tự động hóa cao: không người lái trong quá trình cân và đóng gói, máy tự động báo động khi thất bại.
- An toàn và vệ sinh:
- Không có phim, máy sẽ báo động.
- Máy báo động và dừng lại khi áp suất không khí không đầy đủ.
- Nhân viên bảo vệ an toàn với công tắc an toàn, báo động máy và dừng khi nhân viên bảo vệ được mở.
- Hygienic construction, the product contact parts are adopted sus316stainless steel.

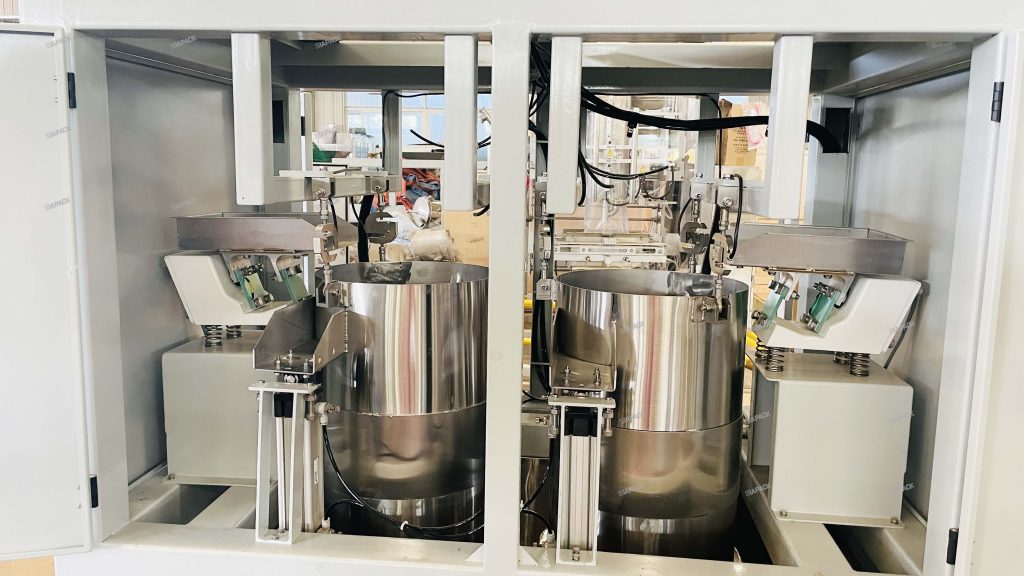

- ZLC2-15k double bucket weighing machine
Giới thiệu :
This linear weight is dosing system for Free Flow Powders .Such as Detergent, Sugar, Salt, Spices, Milk powder various sorts of powders, etc. Also it is suitable for dosing granule products such as Coffee beans, Rice, Sesame Seeds, and Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods,Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food
Tính năng, đặc điểm:
- 7” color touch screen with multi-language operating system. Software can be upgraded through USB.
- SUS304 material contact part ,Machine frame made by painted steel.High performance ondust and water proof design.
- Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.
- Amplitude can be automatically adjusted for easy operation.
- Each hopper can be used as single weigher.
- 6. With cylinder controlfor door open-close control , which is faster and more stable.
- 7. Modular control system for easy maintenance and cost-saving.
Parameter:
Weighing range :10-15kg
Accuracy :±0.5-0.8%
Min scale :0.1gram
Max speed :20-40bag/min
HIM:7” touch screen
Power supply :AC220±10% 50HZ /60HZ 1KW
